62.5kVA 62.5kVA

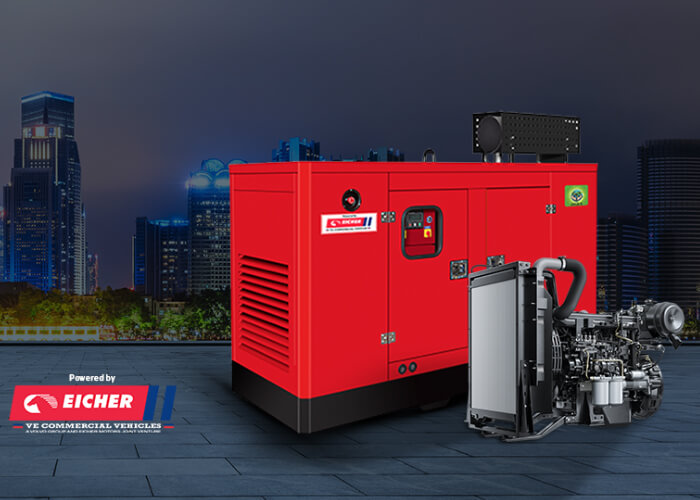

62.5kVA CPCB II - EICHER branded engine is an in-line 4-cylinder, 3.3-liter, turbocharged intercooled. Eicher branded engines are designed with world class technology to deliver superb fuel economy, high reliability and uninterrupted power supply. Eicher branded engine is right choice for power generation.



  • Engine-ModelDiesel Engine
  • Output-Range80 HP/59kWm
  • Displacement3.3 Liters
  • RPM/Hz1500/50 Hz


Field Set Features 62.5kVA CPCB II ENGINE
Technical specifications Mechanical Output 59 kWm
Electrical Output 62.5kVA/50kWe
Rated Speed 1500 RPM
Gross Power (HP) 80
Emissions Complaint CPCB II
General Bore 100 mm
Stroke 105mm
Displacement 3.3 Liters
Aspiration Turbocharged Intercooled
Rotation from Flywheel End Anti-clockwise
Combustion System Direct Injection System
Type of Governor Mechanical
Class of Governing A1
Compression Ratio 17:01
Cooling System Liquid
Cycle 4 stroke
Number of Cylinders 4-inline
Standard followed for Flyhweel Hsg / Flywheel SAE 2/11.5
Service Interval 500 Hrs/12 Months
Total Coolant Capacity 17 Liters
Total Lubricating Capacity 13 Liters
Engine Dimensions Dry Weight 474 kg
Height 1092mm
Length 1183mm
Width 802mm
